SMB350The SMB350 is a multi-circuit energy metering module that can simultaneously monitor up to 8 separate 3-phase circuit loads, or 24 single phase circuit loads. It can measure the common voltage, and the current, power, and energy for each branch, as well as other parameters. It can display them on its LCD display or send them to a remote host through its RS485 communications interface. It cannot be directly connected to the circuit loads, but must first use an external dedicated CT which is designed for this purpose. Small in size, but big in benefits.
Applications:
Branch circuit monitoring / Load surveying / Load monitoring / Building automation monitoring / Energy management / power metering
Features
1. Small footprint, can be installed in retrofitting of existing power panels
2. Power Supply seperated from measured circuits in case of power interruption
3. Measures the voltage, current, real power, power factor, real energy,
4. reactive energy, apparent power, reactive power, and frequency.
5. Meter can be used in the following configurations:
1-Phase, 2-Wire
3-Phase, 3-Wire
3-Phase, 4-Wire
6. Modbus/RTU over RS485 communication
7. Operating Temperature: -30 to 50˚C (-22 to 122˚F)
8. Operating Humidity: to 95% RH (non-condensing)
9. Mounting: DIN rail, TS35/7.5 or 15

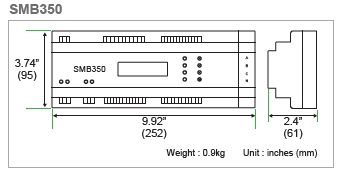

10. Dimensions (W x H x D): 9.92” x 3.74” x 2.4” (252 x 95 x 61 mm)
11. Frequency : 50 or 60 Hz
12. Max Voltage : 80~350 VAC (L-N), 600 VAC (L-L)
