High Speed Series Overlapping

High Speed Series Overlapping

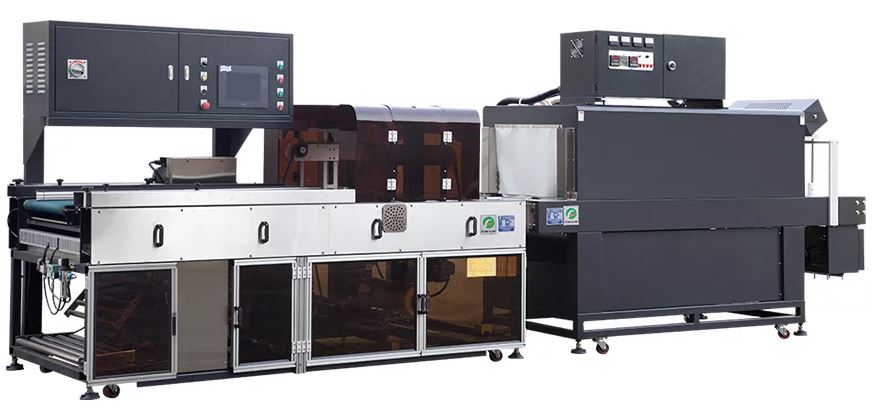

FYT-501
FYT-501 series are our newly developed models that meet the newest over-lap packaging systems adopted by the industries in the world. High speed, Nice packing, Functional, Simple maintenance, easy operation and manpower saving.
Packing material is LDPE shrink film. Both transparent and printed shrink film can be used.
Single film packing is overlapped at the bottom of the products, there are no heat seals on the packages.
Multi-Axis of PC base programming control by color touch screen operation. Within specified range (L x W x H) for different products is completely simple for size-change on the screen.
Each action and workstation of machines can be displayed on the screen for view.
Film is delivered by Servo motor, so the film length is easily controlled. Sucking conveyor is equipped.
Two film cradles at single-spindle air pressure can be exchanged. Each set can bear 60~90kgs of film roll.
Film-rolling mechanism is controlled by Servo motor. the packing in different heights can proceed at any time. Automatic trip device for breakdown and lip type conveyor are also equipped.
The machine can match the interlocking control system of before/after production lines.
The machine body is made of standard steel #SS41 with powder painted surface. Inner oven is made of SUS#304.
Electric heating stainless steel tube is equipped with fin and installed with ceramic adapter wires at two ends, so temperature can be adjusted. ABM Mineral Wood board covers heat-reserving layer.
Twin circulation fans are to ensure even heat distribution inside shrink oven. Heat wind direction is adjustable.
The machine's structure is melted and formed with square SS41 steel pipes with powder painted surface.

---
