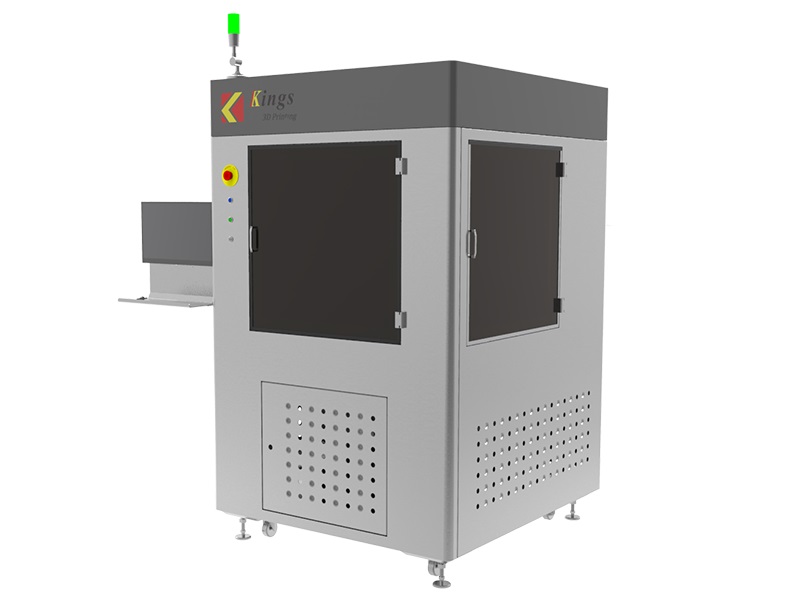

KINGS 850Pro Large Print Volume SLA 3D Printer

KINGS 850Pro Large Print Volume SLA 3D Printer

KINGS 850Pro Large Print Volume SLA 3D Printer
Basic information
Construction Size: 850mm(X)×850mm(Y)×550mm(Z)
Equipment Size (without display): 135cm(W)×146cm(L)×222cm(H)
Equipment Weight:about 1380kg
Rated Dissipation: 1.8KVA
Product Details
BASIC INFORMATION
Max Printing Size 850*850*500mm
Machine Size 140cm(W)*149cm(D)*247cm(H)
Rated Power Consumption 1.8KVA
Machine Weight 1900kg
LASER SYSTEM
Laser Type Solid-state frequency tripled Nd: YV04
Wavelength 355nm
Power Resin Surface Power≥ 300 mW
OPTICAL & SCANNING SYSTEM
Scanning Mode Germanic galvanometer scanner
Variable Beam System Galvo/Closed-loop
Beam Size (diameter @1/e2) 0.075-0.8mm(Variable Beam)
Max Scanning Speed 15.0m/s
RECOATING SYSTEM
Main Sturcture Marble recoater frame, marble elevator holder and marble scanning system base
Coating Mode Intelligent position vacuum recoating
Vertical Resolution Ratio 0.0005mm
Repeat Positioning Accuracy ±0.01mm
Layer Thickness 0.05mm~0.25mm
Accuracy L≤150mm, ±0.1mm;
L＞150mm, ±0.1%*L
CONTROL SOFTWARE
Motion Control System Closed-loop
Machine Control Software KINGS 3D control software
Input Data File Format STL/SLC
Operating System Windows 7/10
Network Type and Protocol Ethernet，TCP/IP
INSTALLATION CONDITION
Electrical Requirement 200-240VAC 50/60Hz, single-phase,10A
Ambient Temperature 20-26ºC (72-79℉)
Relative Humidity ＜40%，non-condensing
First Tank Resin About 550kg
WARRANTY
Machine Two years
Laser Two years
Shenzhen KINGS 3D Printing Technology Co., Ltd. is a high-tech enterprise who has been devoted to providing scientific and efficient SLA 3D printing solutions since 2008, and has been growing rapidly ever since, because of continuous innovation of SLA 3D printer in customized software, high speed printing efficiency, large printing scale, and long-term printing stability.As a leading brand of industrial SLA 3D printer, KINGS 3D runs not only the largest R&D and manufacturing base for SLA 3D printing machine and printing material in South China, but also one of the largest customized 3D printing service center in China.Kings SLA 3D printers have been well received by many industries, including 3D printing prototype, shoe sole, automotive models, sculpture, architecture, art & craft, ceramics, quick casting and etc. So far thousands of enterprises from both the domestic and oversea market are developing new products with Kings SLA 3D printers.

---
