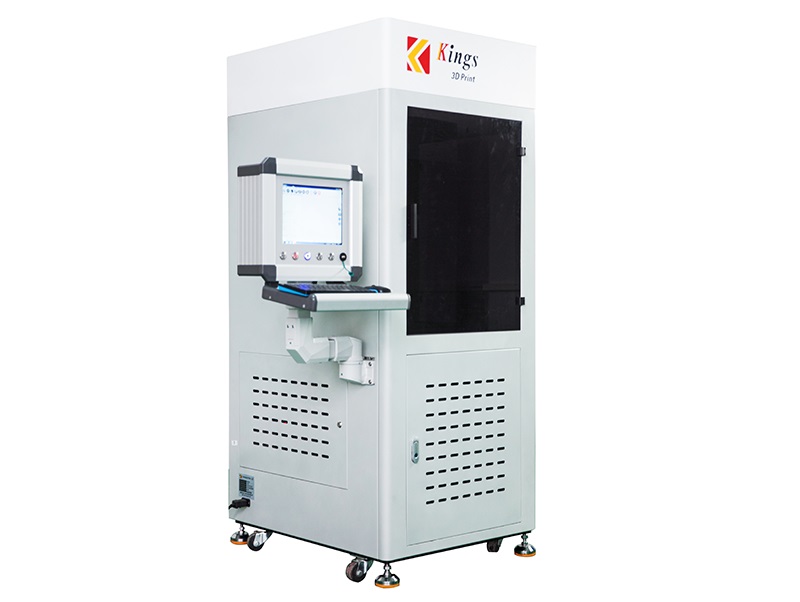

KINGS 450Pro Industrial SLA 3D Printer

KINGS 450Pro Industrial SLA 3D Printer

KINGS 450Pro Industrial SLA 3D Printer
Basic information
Construction Size : 450mm(X)×450mm(Y)×350mm(Z)
Equipment Size (without display): 94cm(W)×102cm(L)×198cm(H)
Equipment Weight:about 800kg
Rated Dissipation: 1.2KVA
Product Details
BASIC INFORMATION
Max Printing Size 450*450*350mm
Machine Size 104cm(W)*117cm(D)*192cm(H)
Rated Power Consumption 1.2KVA
Machine Weight 104cm(W)*117cm(D)*192cm(H)
LASER SYSTEM
Laser Type Solid-state frequency tripled Nd: YV04
Wavelength 355nm
Power Resin Surface Power≥ 300 mW
OPTICAL & SCANNING SYSTEM
Scanning Mode Germanic galvanometer scanner
Variable Beam System Galvo/Closed-loop
Beam Size (diameter @1/e2) 0.065-0.8mm(Variable Beam)
Max Scanning Speed 12.0m/s
RECOATING SYSTEM
Main Sturcture Marble recoater frame, marble elevator holder and marble scanning system base
Coating Mode Intelligent position vacuum recoating
Vertical Resolution Ratio 0.0005mm
Repeat Positioning Accuracy ±0.01mm
Layer Thickness 0.05mm~0.25mm
Accuracy L≤150mm, ±0.1mm;
L＞150mm, ±0.1%*L
CONTROL SOFTWARE
Motion Control System Closed-loop
Machine Control Software KINGS 3D control software
Input Data File Format STL/SLC
Operating System Windows 7/10
Network Type and Protocol Ethernet，TCP/IP
INSTALLATION CONDITION
Electrical Requirement 200-240VAC 50/60Hz, single-phase,10A
Ambient Temperature 20-26ºC (72-79℉)
Relative Humidity ＜40%，non-condensing
First Tank Resin About 140kg
WARRANTY
Machine Two years
Laser Two years
