GV-500

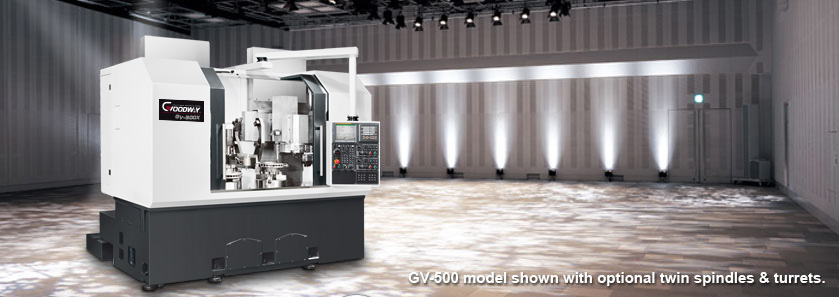

Packed with the latest machine tools technology and high precision turning capabilities, the Goodway GV-500 series high speed vertical CNC turning center combines a high rigidity structure and precision linear guideways with a servo indexing turret and powerful spindle ( max. torque up to 883 N-m ). These series features a compact machine size with heavy duty turning capabilities. In addition to the GV-500 series, the GV-500X series twin spindles & turrets equipped with loading & unloading systems can complete disk-shape work pieces that need multi-processing in one single setup which saves a great amount of time and increases production efficiency to meet your needs of today and tomorrow.


Fully enclosed splashguard keep chips and coolant contained for a safe clean working environment.
The low center of gravity design with 90 degree rotatable control panel provides easy access to load & unload parts and a user friendly operating interface.
Super compact machine size ( 3.3m ) equipped with rear discharge chip conveyor increases factory space usage while providing you with a convenient conveyor system planning.

Max. Swing Diameter : Ø 650 mm ( 25.59" )

Max. Turning Diameter : Ø 520 mm ( 20.47" )

Max. Turning Length : 400 mm ( 15.75" )

Hydraulic Chuck Size : 12"

Spindle Bearing Diameter : Ø 130 mm ( 5.12" )

Spindle Motor : 15 / 18.5 kW ( 20 / 25 HP )
( cont. / 30 min. )

Spindle Nose : A2-8

X-axis Travel : 350 mm ( 13.78" )

Z-axis Travel : 550 mm ( 21.65" )

X / Z Axes Rapids : 20 m/min. ( 787 lPM )

Turret Station : 8 ( Opt, 12 )

Live Tooling Turret Station : 12

NC Control : FANUC Oi -TF

---
