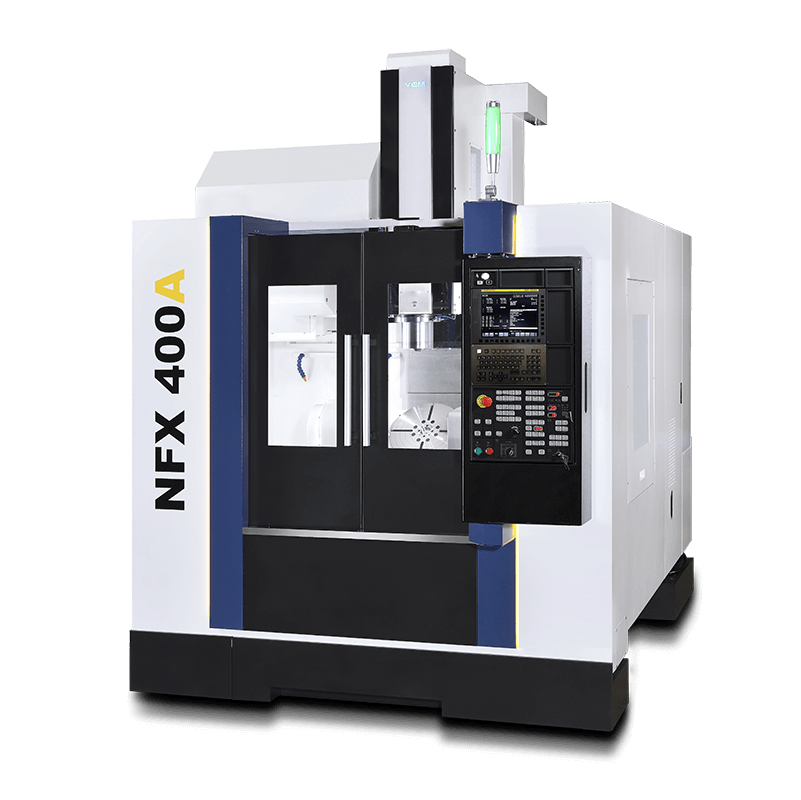

5-Axis Vertical Machining Center NFX400A

5-Axis Vertical Machining Center NFX400A

NFX400A
High Rigidity Body Structure Design
Extra wide column and base design to ensure best support and cutting rigidity.
High quality and rugged MEEHANITE® casting maintains optimum accuracy.

High Accuracy Axial Movement
Linear guideways adopted for fast and smooth axial movement.
Pre-tensioned ball screws with direct drive motors achieve high torque and low backlash.

A/C-axis Rotary Table
150˚(+30˚/ -120˚) A-axis tilting angle increases the ability of machining.
Rotary table surface is at the same level as the 5th axis centerline to ensure machining accuracy.
ø350 mm (ø13.8") table size with ø50 mm (ø1.97") table-through hole design.
Max. Workpiece Dimensions ø400 x 310 mm (ø15.8" x 12.2") .
6 Piping preparation for fixture (Air pressure x 2 + Hydraulic x 4).

---
