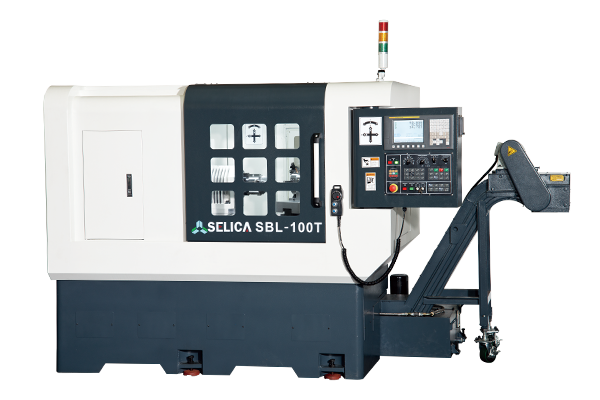

Hybrid Sphere CNC Lathe SBL-100T

Hybrid Sphere CNC Lathe SBL-100T

SBL-100T
The SBL series is the ideal solution for making the components of steering system such as Ball pin and Tie Rod for inner ball joint and outer ball joint, medical implements such as femoral head for hip joint , Piston head for piston pumps and etc...
The SBL series is designed for the ball head machining, which is the best solution for high quality sphere roundness and surface roughness.
The SBL series includes rough turning, fine turning, carbide roller burnishing, part pulling, and cut-off process.
Burnishing process is an ideal way to enhance the surface hardness, extend the life-time and enlarge the allowance of abrasion.
About diversity of control axis, SBL series use B axis to do ball head machining and burnishing. B axis process the circular movement, so that the roundness can be achieved up to ±0.005mm. On the other hand, for traditional CNC lathe, the sphere machining is controlled by X and Y axis simultaneously, which eventually leads to oval shape.
Except standard advantage of CNC controller system, SBL series uses sliding heading spindle design and square guide way on Z axis movement, which ensure the accuracy and stability.
The SBL series can equip with hydraulic turret (6-position) and power turret (8-position) to achieve multiple application.

---
