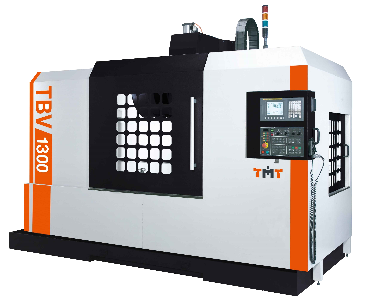

Machining Center TBV-1300

Machining Center TBV-1300

TBV-1300
The Ultimate VMC's from TMT.
Now, you can step up your cutting operations for greater profit while reducing your operation costs. Select from the TMT line of ruggedly constructed VMC's.

Perfectly Designed to Optimize Cutting Efficiency

Oil Cooling Diagram
The oil cooling tubes are connected to the spindle motor adaptor and the spindle, which eliminate thermal displacement.

Spindle
The box type spindle stock is a rigid construction and scientifically rib reinforced.
The spindle runs on angular contact bearings to achieve optimal spindle rigidity and machining accuracy.
Minimum dynamic vibration is ±2μm.
Uniform lubrication points on slide ways. The machine employs a volume type lubricator for consistent oil flow to each point, assuring a uniform lubrication effect each slide lubrication point.

Lubrication System;
Well-designed lubrication system eliminated sticking problem on slide ways.
The oil grooves feature pressure relief to eliminate floating problem due to excessive oil pressure.

High Precision 3-dimensional Coordinate Measuring
All structural parts of the machine are precisely inspected by the sophisticated 3-dimensional coordinate measuring machine(CMM), that assure outstanding parts accuracy for assembling.

High-Tech Precision Inspection
Each machine is subject to high-tech precision inspections, such as laser unit and Renishaw ball bar tester, to guarantee the best possible repeatability and positioning accuracy.

Three Axes Box Ways
Ruggedly, Stable, Precision!
Outstanding Features Assure Heavy Accurate Machining on Every Job.The Ultimate VMC's from TMT.

2-speed Gear Type Spindle (TBV-1685/1885/2085)
Featuring high efficiency, high torque output and minimum noise.

Powerful Chip Flushing System
There are several flushing nozzles equipped at both sides of the machine guard. These nozzles provide efficient chip removing effect during cutting.

Tool Magazine(OPT)
Increased magazine loading capacity of 30, 40 tools is available.

Gear Type Spindle(OPT)
Gear type spindle can achieve 4,500/6,000 rpm and provide high torque to meet customer's needs for heavy cutting.

Direct Drive Spindle(OPT)
Direct coupled spindle offers less vibration than belt driven spindle, which drastically improves surface finish and machining accuracy.

Coolant through Spindle(OPT)
Coolant through spindle system can cool workpiece with fully effect to meet cutting needs for various materials.

Optical Scale(OPT)
The accuracy could be much improved with optical scale.

---
