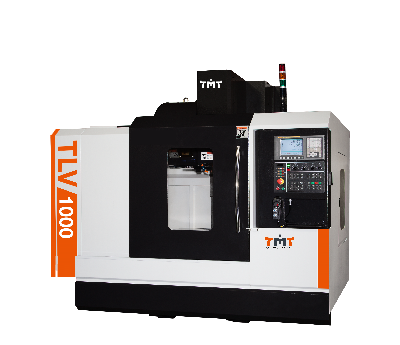

Machining Center TLV-1000

Machining Center TLV-1000

TLV-1000
The Optimal in Vertical Machining Center
New Generation from TMT！

High Rigidity Structural design supports high speed and heavy duty cutting conditions required today.
To meet high production needs, the dual pallet APC system reduces non-machining time to greatly increase efficiency and utilization of the machine.

Column
Extra heavy duty column construction dramatically increases rigidity and stability.

High Rigidity Structural design supports high speed and heavy duty cutting conditions required today.
To meet high production needs, the dual pallet APC system reduces non-machining time to greatly increase efficiency and utilization of the machine.

Column
Extra heavy duty column construction dramatically increases rigidity and stability.

Magazine
The tool magazine is secured and supported to the base instead of the column to minimize column tilting and vibration caused magazine movements.

Table
Centralized auto lube system provides necessary lubrication to required areas to prolong machine life.

Basement
New design of wide basement, oversized span. The triangle shape construction increases machine rigidity and stability.
The sturdy column is reinforced with additional ribbing to evenly disperse and absorb resistance during machining without distortion.

Saddle
U-shaped ribbing drastically improve structural rigidity.
Wider and longer saddle structure compliments the heavy duty linear guide to enhance dynamics of the machine.

Spindle
10000 rpm Best cartridge type spindles with high speed bearings for extra rigidity and incredible surface finish & accuracy.

Oil Chiller
The spindle oil chiller provides consistent temperature control in order to maintain ultimate machine stability.

Linear Guide Way
*The linear guides on three axes are P4 grade, providing stability and heavy cutting.
*High efficiency machining center. Rapid traverse 36M/min

---
