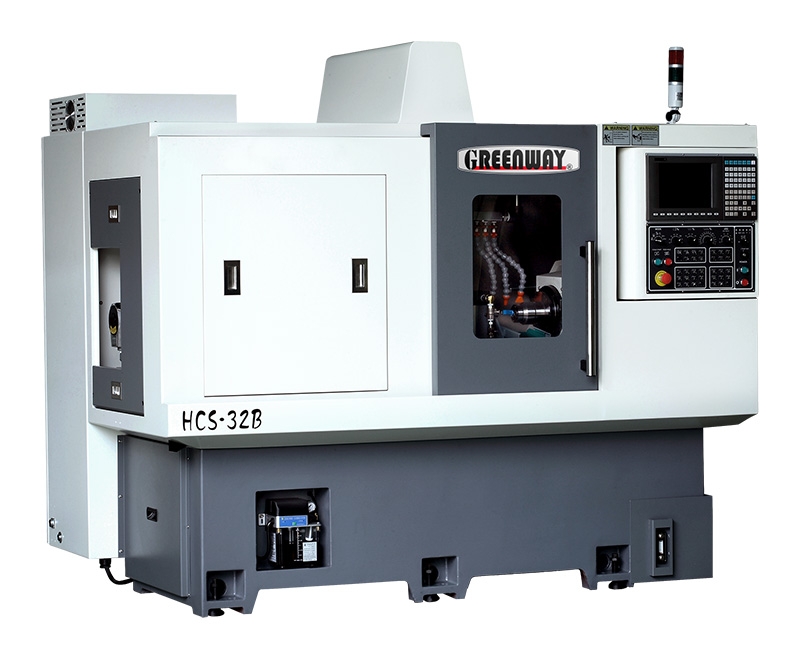

Dual-Spindle CNC Lathe HCS-25B/32B

Dual-Spindle CNC Lathe HCS-25B/32B

HCS-25B/32B
1.High rigidity body structure, machine base casting is integrally formed and high rigidity linear guide way, providing stabler, faster and higher precision.
2.Built-in main spindle is with C-axis function, high speed, big power, high precision and low vibration which can make surface of workpiece smoother.
3.Optional：Synchronous rotary guide bushing device, it's suitable for processing long workpiece which can reduce cycle processing time and improve production efficiency.
4.Sub-spindle is with C-axis function, it can work with live tooling for end side drilling, tapping and milling.
5.It can depend on different demand of machining to with or without Synchronous rotary guide bushing device.
6.Axes：Z1/X1/Y/C1/Z2/X2/C2 + 3 sets of live tooling devices (A/B1/B2)
Max. 23 tools, can do machining on front side and back side at the same time which can save time for processing.
7.With guide bush type travel is 180mm, min. offal is 150mm. Without guide bush type travel is 310mm, min. offal is 50mm.

---
