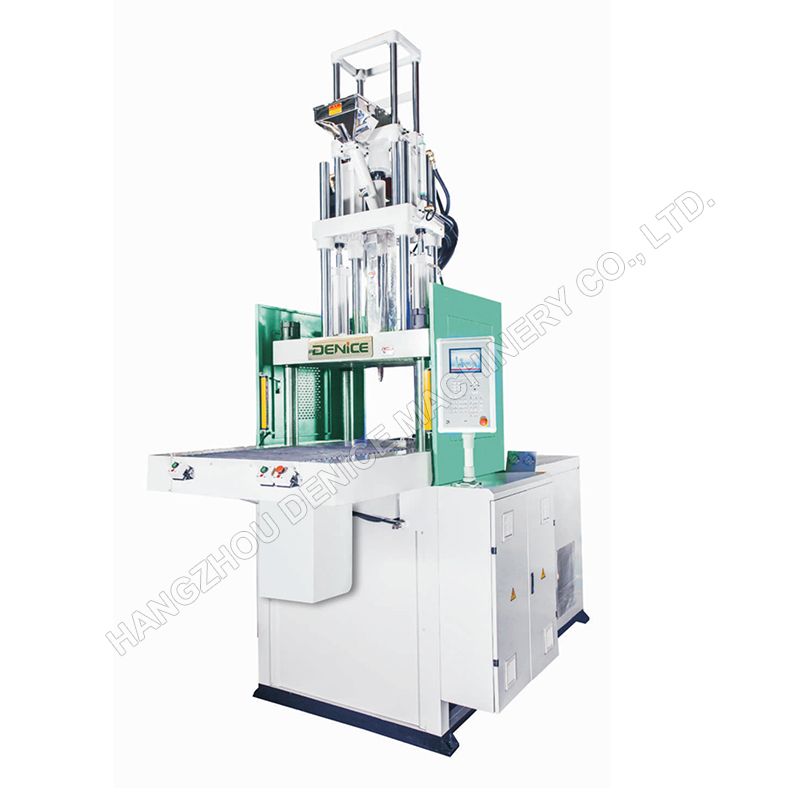

hybrid vertical injection molding machine DV-1600S

hybrid vertical injection molding machine DV-1600S

hybrid vertical injection molding machine DV-1600S

If You Have Any Question On Hybrid Vertical Injection Moulding Machine, Hybrid Vertical Injection Molding Machine, We Will Give The Professional Answers To Your Short Questions.


Single Slide Table Style of DV-S Series:
* Vertical four column clamping, vertical injection, ease to put and take out inserts.
* Single slide design, item put and take out of the work area, which shares ease operate, high safety character.
* Four column single slide table machine (1 upper mold, 1 bottom mold)
We are injection molding machine manufacturers.
Specification
Model Unit DV-1200S
(  Injection    Unit  ) Screw diameter mm Ф46 Ф52
Maximum injection pressure Kg/cm2 2193 1716
Theoretical shot volume cm3 365 467
Maximum shot weight（PS） g/Oz 325（11.4） 415（14.6）
Injection rate cm3/sec 123 157
(  Clamping      Unit  )  Clamping force ton 120
Sliding Table size  mm 590×700
Sliding Table Stroke  mm 760
tie bar distance mm 600×400
Minimum mold thickness mm 200/300（Can be customized according to customer requirements）
Opening stroke mm 300
Open daylight mm 500/600（As required）
Ejector force T 4.0（Can be customized according to customer requirements）
Ejector stroke mm 73
(  Others  ) Pump motor power Kw 15
Hydraulic system pressure Kg/cm2 140
Barrel heating power Kw 7
Total wattage Kw 22
Oil tank capacity L 400
Machine weight  (approx.) T 6.8
Machine dimensions(approx.) m 3.5×1.1× 3.6

---
