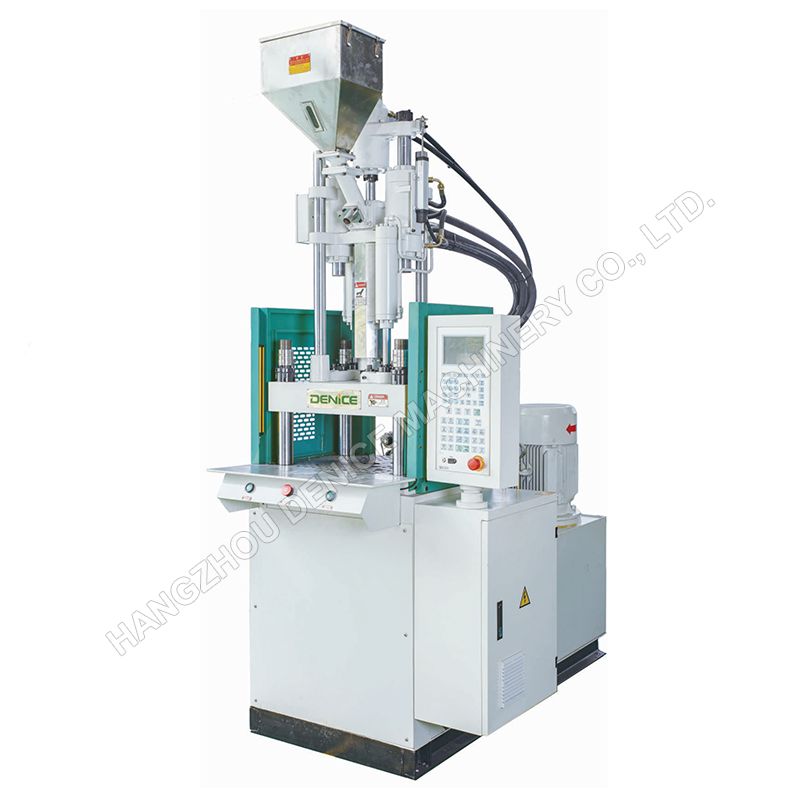

Vertical injection molding machine DV-400

Vertical injection molding machine DV-400

Vertical injection molding machine DV-400
If You Have Any Question On Vertical Injection Moulding Machine Working, vertical Screw Type Injection Moulding Machine, We Will Give The Professional Answers To Your Short Questions.

*Standard Style of  DENICE DV Vertical Injection Machine
*Vertical clamping, vertical injection, safe and prevent mold from weight, it fit for inserts plastic molding.
*Human oriented design, different types machines to select, more closely to clients’different requirement.
Specification
Model Unit DV-250
(  Injection    Unit  ) Screw diameter mm Ф25 Ф28 Ф32
Maximum injection  pressure Kg/cm2 1814 1446 1107
Theoretical shot volume cm3 49 61 80
Maximum shot weight（PS） g/Oz 45(1.6) 56（2.0） 74（2.6）
Injection rate cm3/sec 37 46 60
(  Clamping      Unit  )  Clamping force ton 25
tie bar distance mm 335 × 225
Minimum mold thickness mm 100/180（Can be customized according to customer requirements）
Opening stroke mm 180
Open daylight mm 280/360（As required）
Ejector force T 1.3
Ejector stroke mm 35
(  Others  ) Pump motor power Kw 4
Hydraulic system pressure Kg/cm2 140
Barrel heating power Kw 2.7
Total wattage Kw 6.7
Oil tank   capacity L 120
Machine weight  (approx.) T 0.9
Machine dimensions(approx.) m 1.6×0.9× 2.3

---
