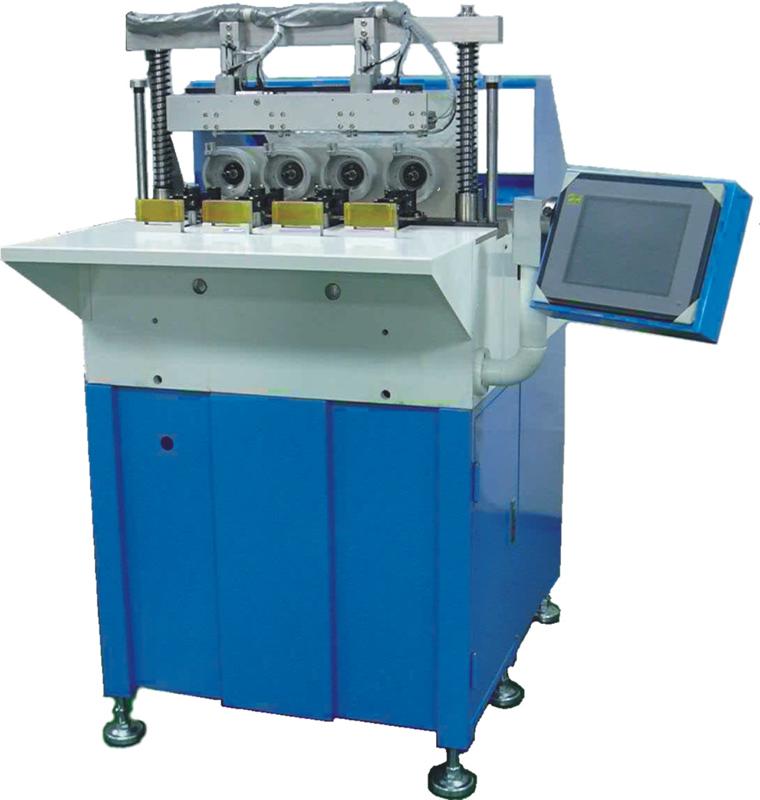

CNC Fully Automated Fan Motor Winding Machines
CNC Fully Automated Fan Motor Winding Machines
CFM12041. Unique human-machine interface:
(1) Easy operation of the machine (within 5 minutes).
(2) Without another PC and keyboard connection.
(3) Shortening of the time of machine adjustment with touching screen.
2. Quick and easy jig change.
3. Automatic wire assortment leaving no residual wire.
4. Precise dereeler (tension unit) ensuring winding quality.
5. CNC AC Servo motor transmission offering precise position at desire spindle speed.
6. Any PIN wrapping angle choices resulting in great compatibility of products.
7. Special structure of transmission having a highly flexible rigidity.
8. Independent loading & unloading turning architecture increasing productivity.
Specification :
1. Spindles: number of spindles: 4 positioning angle: 360° set unit: 1°.
2. Spindles turn speed: Max6,000rpm.
3. Controller: CNC 4+1 axis AC motor servo control.
4. Machine: weight: 380kg, dimensions: 1,090 (w)x1,100 (l)x1,310(h)mm.
5. Packing dimensions: total weight: 450kg; dimensions: 1,190(w)x1,210(l)x1,410 (h)mm.
Vendor Name : Yeou Yuan Machine Co., Ltd.
