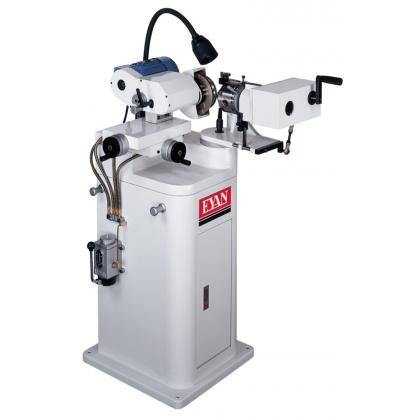

Precision Drill Sharpener

Precision Drill Sharpener

EY - 32A
EY-32A Precision Drill Sharpener is mainly applied to 1) CNC lathe, 2) CNC Machining Center, 3) Die Making.

Break Through Agaon in Technology of Drill Sharpener, Quick and Precise
1. Cam device: This machine comes with four cams ranging from no.1 to no.4. Simply change the cam when grinding drill, end mill cutter, chamfering cutter, tap, center drill and etc.

2. Drill positioning device: Grind drill of different diameters by adjusting the graduation according to the desired diameter and placing any cutting edge of the drill parallel to the positioning device. This method applies to all others.

3. The first one created that moves in up-down vibration to sharpen drill bits. Use a chuck to clamp drill with up and down vibration by winding the handle. The angles will be changed automatically to sharpen front edge angles, debris angle, slice drills and still center point, all of which can be clamped and sharpened together in one process. It displays high efficiency and high precision sharpening drills.

4. Adjusting button for rake angle of drill bits: The adjusting button controls the size of rake angle of the drill. When sharper edge is desired, turn more of the number-controlled button to get a greater graduation reading so as to have a sharper edge ground.
